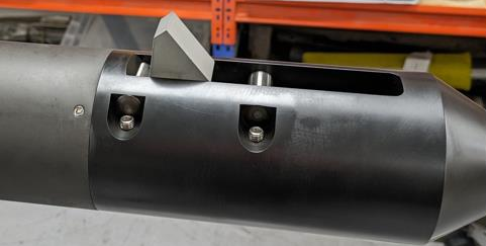

K-Blade Electro-Mechanical Blading Tool
Modular design, directly connected to the setting tool, suitable for 2-3 / 8 "to 9-5 / 8" tubing / casing blading operation, establish the circulation channel.
Characteristics
· Pure electric power, no explosive , no jarring
· Flexible well deployed mode, using E-line / slickline / coiled tubing / tubing, etc
·Can be used for large deviation wells or horizontal wells
· The tools are small and can be carried with civil aviation
· Up to 6 holes in one single run
· Suitable for tubing grade J-55, L-80 and P-110
Technical parameters
油管尺寸
Pipe size
2.375“
2.875”
3.500“
4.500”
5.500“
7.000”
9.625“
材质
Material
J55,L80,P110,VM125,GRE LINED
磅级 LB/FT
4.6 to 5.8
6.4 to 8.6
7.7 to 12.7
11.6 to 15.1
15.5 to 26
23 to 38
47 to 53
外径 OD
1.688”
2.125“
2.72“
3.6”
4.25“or 4.5”
5.6“
7.75”
坐封工具型号
Sitting tool model
1.688“
2.125”
2.125“/2.72”
3.6“
3.6“
3.6“
4.1“
孔眼尺寸
Hole eye size
0.14
0.14
0.33
0.42
0.7
0.7
0.7
最大孔数（单趟）
Maximum number of holes (single trip)
3 holes（1 PCM），6holes（2PCM）
